pocketPANO COMPACT

Supported cameras

Each pocketPANO COMPACT panorama adapter is specially designed for a specific camera model. All geometric dimensions, contact surfaces, horizontal and vertical rotation angles are precisely adapted to this camera. Due to the large number of different models, we unfortunately can not offer a suitable adapter for all cameras.

Should your compact camera not be there or you are looking for a compact and universal nodal head for your mirrorless camera, then the pocketPANO VARIO is just right for you!

The pocketPANO COMPACT nodal point adapter is already available for the following cameras:

Canon

G7 X II

The beginning of the supported Canon models makes the G7X II with its bright and wide-angle lens and the rugged folding display, which of course can be unfolded during installation on the pocketPANO COMPACT nodal point adapter.

horizontal click-stops: 10 x 36°

vertical click-stops: 0° | +-52° | +- 91° | intermediate positions every 13°



Fujifilm

X100F

The latest version of the X100 with the abbreviation F is at the top of Fuji's compact cameras with APS-C sensor. Excellent results are guaranteed by the 35mm fixed focal length. However, if you also want to capture a wide-angle scene or even want to do a spherical panorama with the X100F, you can not beat the matching pocketPANO COMPACT nodal point adapter!

Notes: Due to the extremely short construction, the nodal point is very close to the axis of the tripod thread. Therefore, a relatively small special fastening screw was necessary. With a little flair, the screw can be used well and it does not require much force. Before mounting on the nodal point adapter, be sure to remove the lens cap!

For a full spherical panorama, 14 images at 0 ° and + -39 ° as well as 7 images (every second detent) at + -65 ° are necessary.

horizontal click-stops: 14 x 25,7°

vertical click-stops: 0° | +-39° | +- 65° | intermediate positions every 13° (up to +-91°).



nikon

Coolpix A

With its large APS-C sensor and sharp lens, the Coolpix A is ideal for panoramic photographers who do not want to compromise on image quality.

horizontal click-stops: 12 x 30°

vertical click-stops: 0° | +-48° | +- 84° | intermediate positions every 12°

pocketPANO COMPACT panoramic head, panorama head, nodal head for Nikon Coolpix A


Panasonic

TZ202 / TZ200 / ZS200

With its large focal length range, it is particularly popular with travelers: the Panasonic TZ202, also known as TZ200 and ZS200 (all are the same).
Now there is also the matching pocketPANO COMPACT nodal point adapter for taking breathtaking panoramas on the go with a small amount of luggage. The nodal point adapter for the TZ202 is also suitable for the identical models TZ200 and ZS200.

horizontal click-stops: 10 x 36°

vertical click-stops: 0° | +-52° | +- 91° | intermediate positions every 13°



RICOH

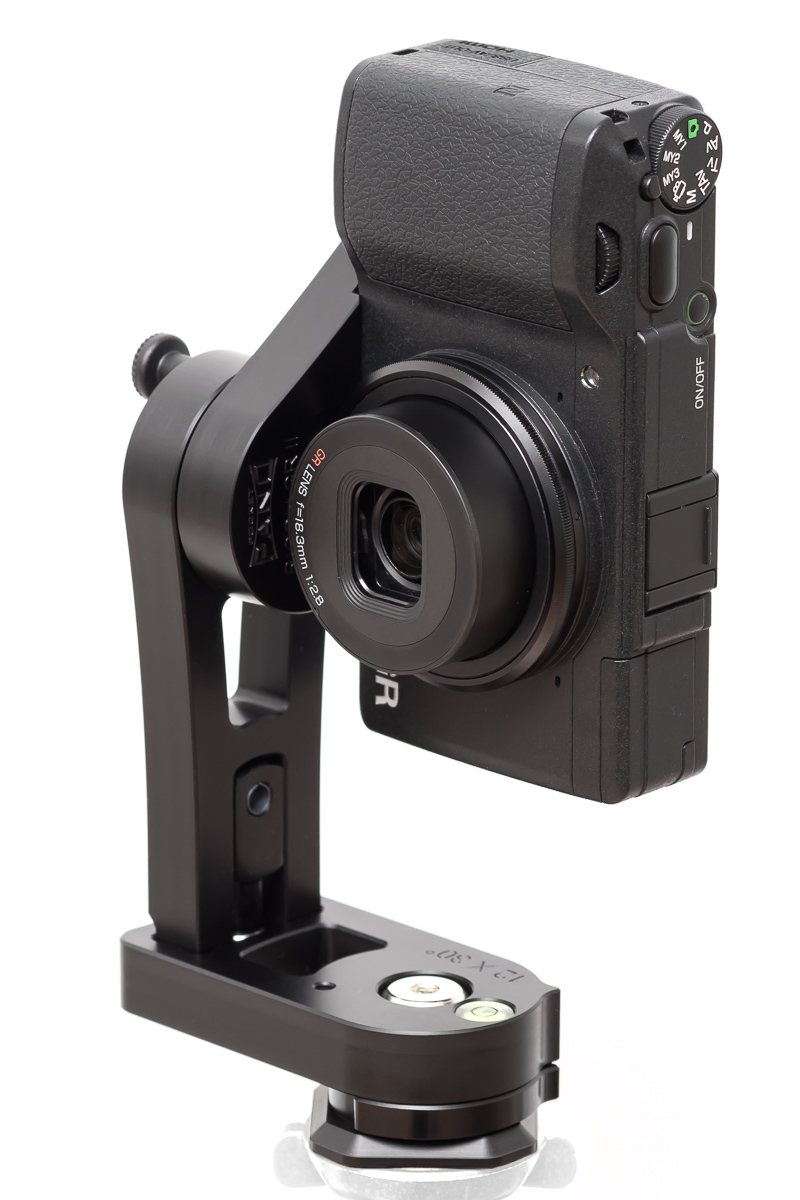

GR II

Also equipped with a large APS-C sensor and a very good 28mm lens, the RICOH GR II is predestined for high-resolution panoramic shots. With the matching pocketPANO COMPACT you have a perfect tool to capture great panoramas with impressive quality!

Info: the GR II and the GR III do not fit in the pocketPANO COMPACT of the other camera!

horizontal click-stops: 12 x 30°

vertical click-stops: 0° | +-48° | +- 84° | intermediate positions every 12°

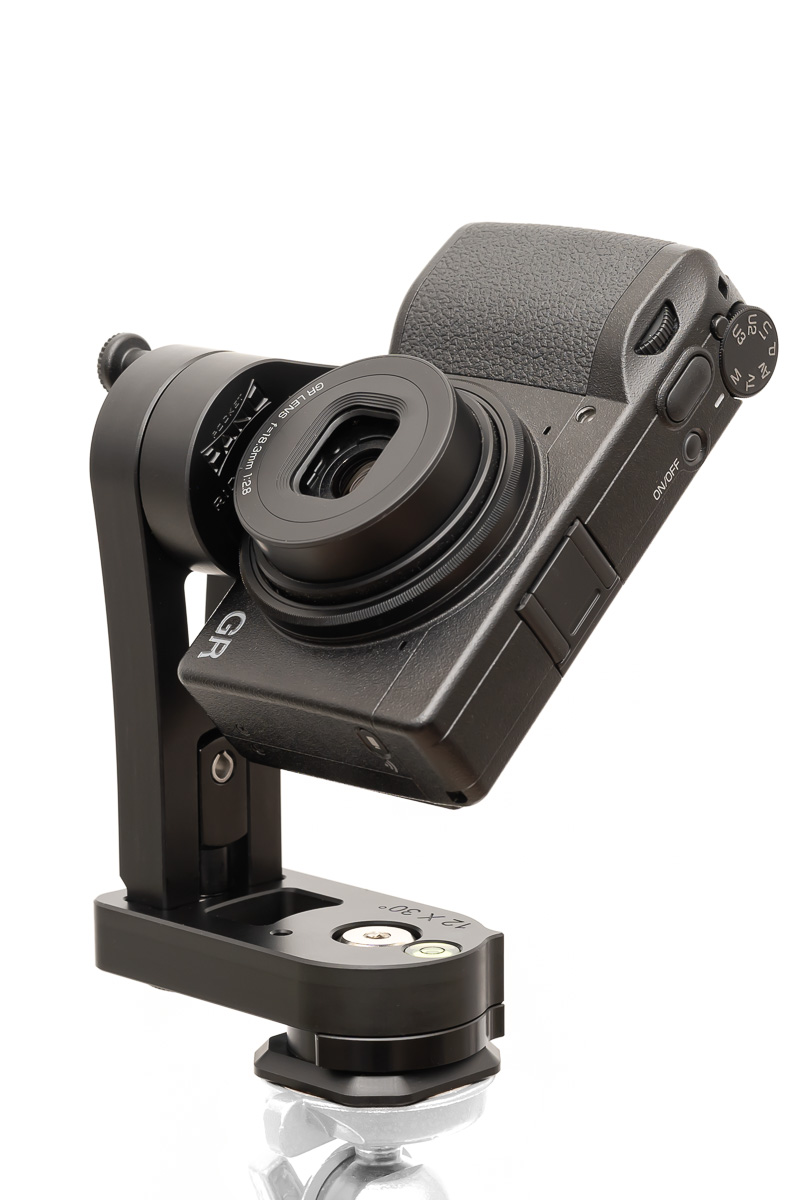

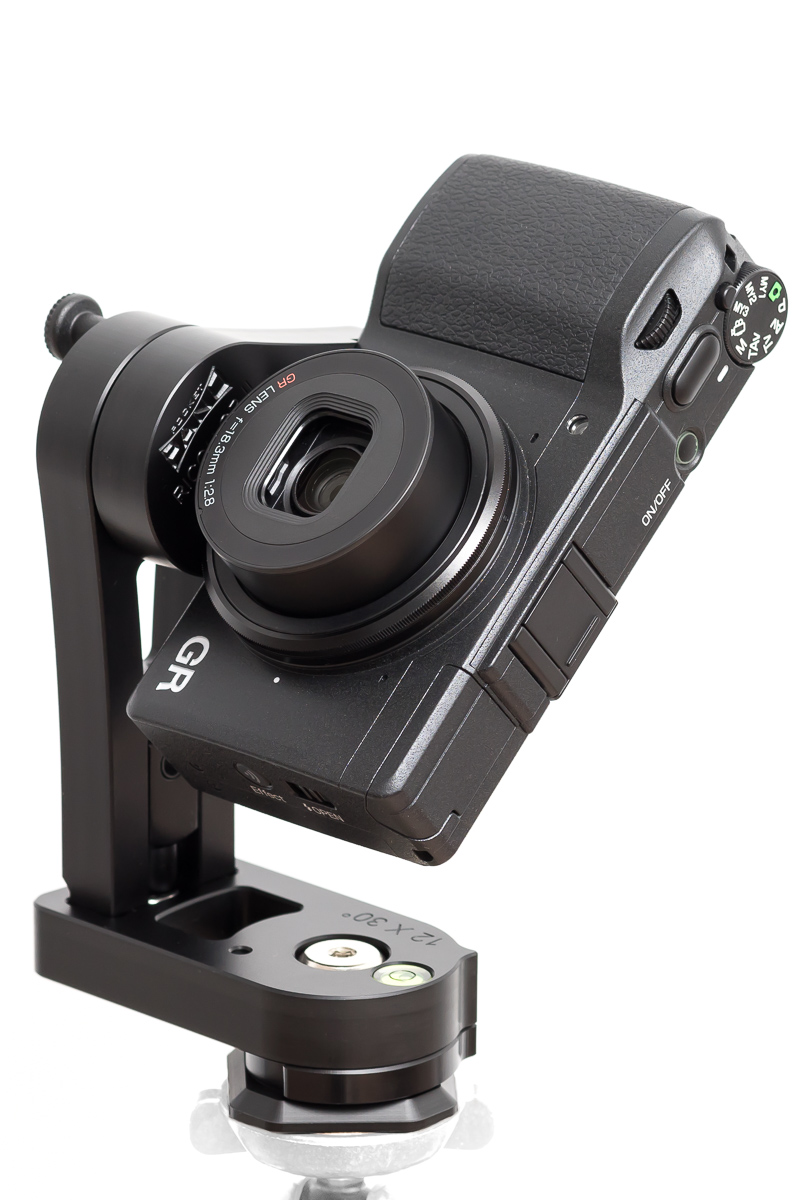

GR III

The successor to the popular GR II has a high-resolution APS-C sensor, a revised 28mm lens and an image stabilizer, making the GR III the ideal camera for street photography. Due to its compactness and the high-resolution lens, it is also ideal for panoramic photography!
The matching pocketPANO COMPACT nodal point adapter is the perfect tool for this and takes just as much space as the camera itself.
Info: the GR II and the GR III do not fit in the pocketPANO COMPACT of the other camera!

horizontal click-stops: 12 x 30°

vertical click-stops: 0° | +-48° | +- 84° | intermediate positions every 12°



Sony

RX100

The first version of the successful 1" compact camera from Sony. Without foldable display and accessory shoe, but with a great lens that is not quite as wide as that of its successors.

horizontal click-stops: 12 x 30°

vertical click-stops: 0° | +-48° | +- 84° | intermediate positions every 12°

pocketPANO COMPACT panoramic head, panorama head, nodal head for Sony RX100

RX100 II

The second version of the RX100 with new sensor and folding screen. Although the lens has remained the same: the pocketPANO COMPACT nodal point adapter for the RX100 (II) is specially adapted to the second version of this camera, which is required by the folding display. Everything fits perfectly and the display can be folded out even when mounted!

horizontal click-stops: 12 x 30°

vertical click-stops: 0° | +-48° | +- 84° | intermediate positions every 12°

pocketPANO COMPACT panoramic head, panorama head, nodal head for Sony RX100 II

RX100 III | IV | V

From the third version of the RX100, a new wider lens, an electronic viewfinder and a revised flip-up screen were installed. All relevant dimensions of versions III, IV and V are identical. Therefore, the corresponding pocketPANO COMPACT nodal point adapter also fits all three versions of this camera and is labeled "RX100 III / IV / V"!
The display can be folded out when mounted.

horizontal click-stops: 10 x 36°

vertical click-stops: 0° | +-52° | +- 91° | intermediate positions every 13°


RX100 VI

The 6th genration of the popular compact camera is equipped with a completely new lens and therefore also requires its own pocketPANO COMPACT nodal head! Not quite as bright at its short end, but much longer focal length at the long end. Nevertheless, the camera starts - like its predecessors - at 24mm and thus also receives the same click-stops for its pocketPANO COMPACT.
The display can be folded out when mounted.

horizontal click-stops: 10 x 36°

vertical click-stops: 0° | +-52° | +- 91° | intermediate positions every 13°



Your camera is not there?

Should your compact camera not be there or you are looking for a compact and universal nodal head for your mirrorless camera, then the pocketPANO VARIO is just right for you!



We are gradually expanding the range of camera-specific nodal point adapters.
If there is no matching pocketPANO COMPACT nodal point adapter available for your camera, then please write us a short message with your desired model. We are trying to follow customer requests, but unfortunately we can not immediately develop a new panoramic adapter for every camera model. But maybe you are not alone with your wish! As soon as we can produce your model economically (which is only possible after a certain quantity), we will inform you about the availability. Of course you do not make any commitment with your request!

On the other hand, we are watching the market for high-quality and (for panoramic shots) suitable compact cameras. We strive to serve the highest possible proportion of newly appearing camera models with our pocketPANO COMPACT panorama adapters!
